CHERRY PICKERS
Special option ordered thru VW. Using the single cab as the base model with Mcode118 (no dropgates) and M65(inscribed load limits), they were fitted with a Ruthmann-Steiger Hydraulic lifting arm and bucket. The cost- more then double what a basic model Single cab cost, About 17000.00 DM for the top of the line Cherry picker (SO8)

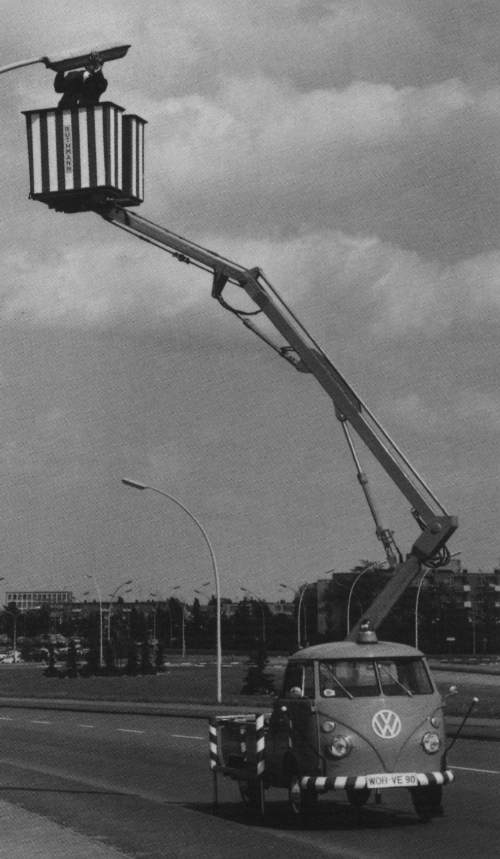

SO8
Ruthmann-Steiger Typ V90
Price- DM 16,960.00

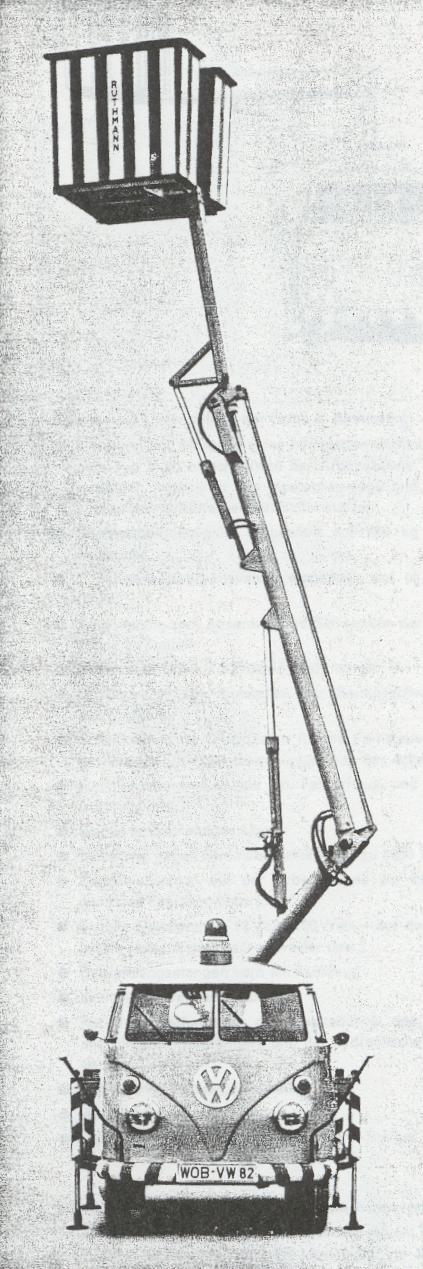

SO9
Ruthmann-Steiger Typ V80
Price- DM 12,960.00
The arm is of tubular construction as opposed to the square v90 arm.

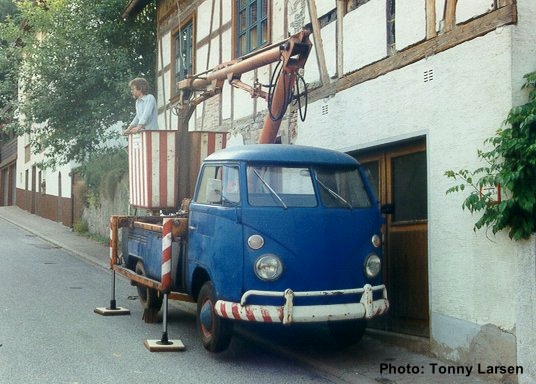

(thanks to tonny of barndoor.dk for the above blue so9 submissions)

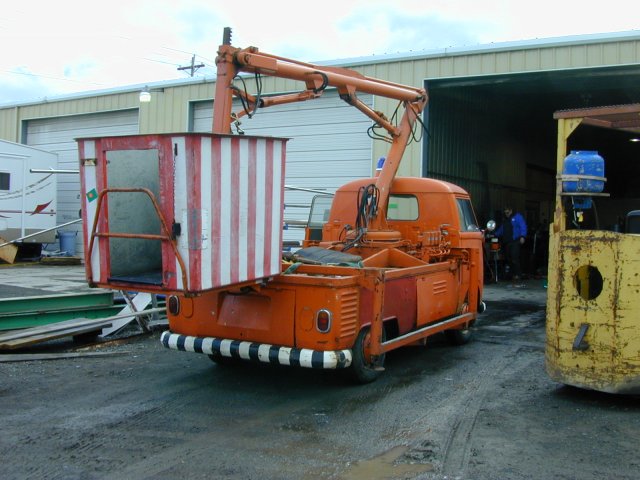

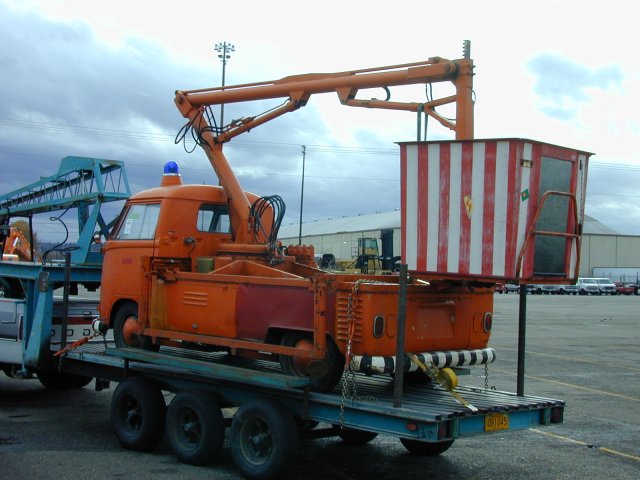

David mayes also picked himself up a S09 picker from overseas
you can read more about his S09 on his website.

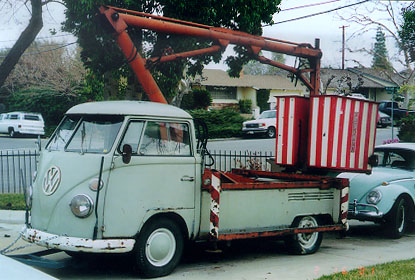

Heres some pics of John foley's S09.

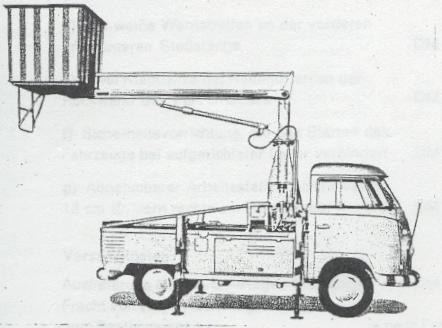

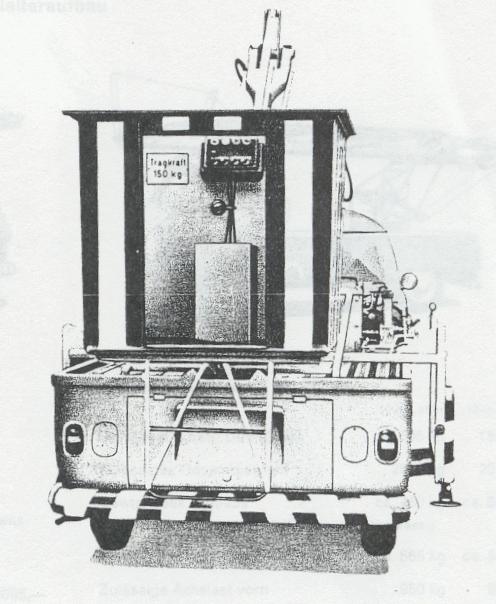

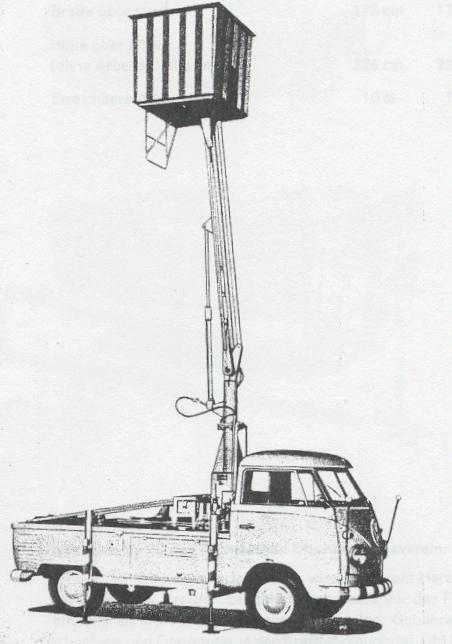

SO10
Ruthmann-Steiger Typ V60
Price- DM 9950.00
Arm attaches differently to lower part of bucket on the v60. Also only has one hinge point, right in the middle of the arm. Other 2 models have 2 hinge points.

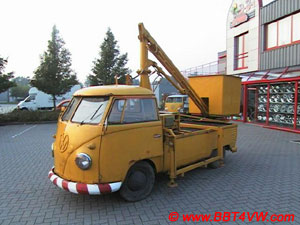

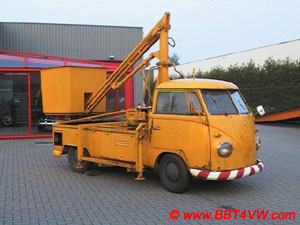

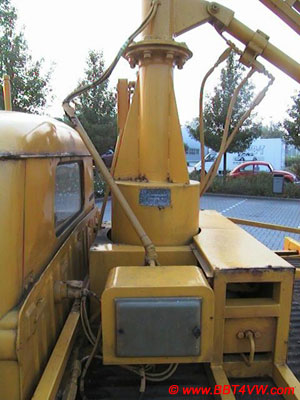

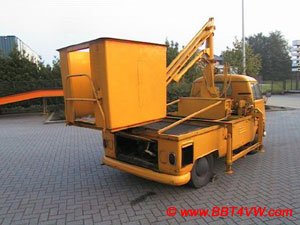

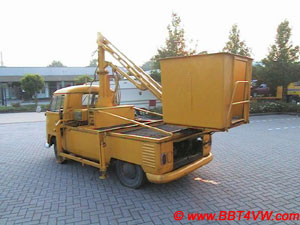

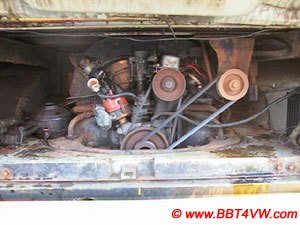

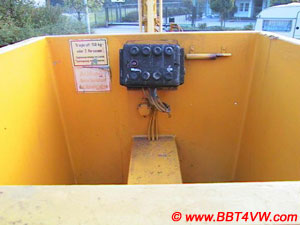

1962, owned by Bob of bbtvw. Oldest picker known of.
62picker1.jpg (21528 bytes) 62picker2.jpg (22977 bytes) 62picker3.jpg (20745 bytes) 62picker4.jpg (21002 bytes) 62picker5.jpg (17544 bytes) 62picker6.jpg (23775 bytes) 62picker7.jpg (37096 bytes) 62picker8.jpg (41620 bytes)

SO8 and SO9. Feature comparison literature so8.9.1.jpg (608832 bytes) so8.9.2.jpg (1069278 bytes)

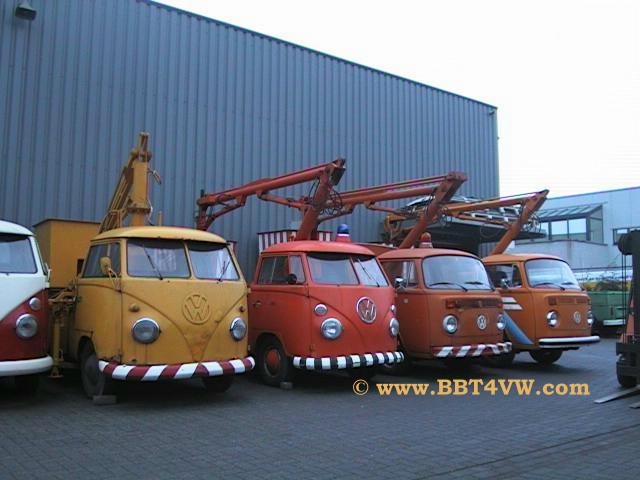

  Bobs collection
Yellow one is a SO10, red one is a SO9

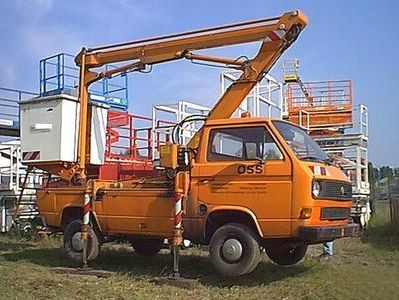

The picker is still made today by VW, of course it has 3 times the bells and whistles. Here is an example utilitytruck.jpg (35243 bytes)

Thanks to David M for some of the literature submissions
